seca mVSA 535 - Medical Vital Signs Analyzer with bioelectrical impedance analysis #0
seca mVSA 535 - Medical Vital Signs Analyzer with bioelectrical impedance analysis #1
seca mVSA 535 - Medical Vital Signs Analyzer with bioelectrical impedance analysis #2
seca mVSA 535 - Medical Vital Signs Analyzer with bioelectrical impedance analysis #3

seca mVSA 535

Tuotenumero 535 1010 001

Medical Vital Signs Analyzer with bioelectrical impedance analysis

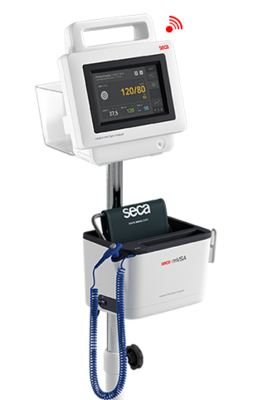

seca mVSA 535
Delivery Time on Request
  • Current mVSA configuration:
  • Blood Pressure + Pulse
  • Without BIA Module
  • Without SpO2 module
  • FILAC temperature oral/axillary
Request Quote Pyydä tuote-esittely
Your current configuration is not available. Please adjust your configuration.
Quick Overview

Luokittelu

  • Basic
  • Advanced
  • Premium

Tekniset tiedot

Blood pressure measurement methodOscillometric, deflation or inflation measurement
Blood pressure measurement timeNormal: 15 - 20 sec / max. 90 sec (adults)
Temperature measurement response timePredictive (oral) 3 - 10 sec.; Predictive (axillary/rectal) 8 - 14 sec.; Direct 60 - 120 sec.
Temperature measuring methodOral/axillary (direct or predictive)

Toimitus sisältää

  • 2x FILAC probe cover (Box á 20 pcs)
  • Removable Smart Bucket with integrated Vital Signs Moduls: for blood pressure/Temp measurement
  • FILAC temperature probes blue (oral)
  • Monitor with power cable
  • seca cuff (size M)
Tuoteseloste

Tuotteen ominaisuudet

  • The seca mVSA can be individually configured to your needs.
  • Conventional vital data measurement of blood pressure, SpO2, pulse rate, and temperature combined with the rapid collection of body composition data consisting of body water, fat mass, and muscle mass.
  • The networkable seca 360° wireless technology eliminates transmission errors and increases the efficiency of your routine measurements.
  • Easy-to-understand graphical presentation of the measurement values on the touchscreen display.
  • Large internal memory for up to 70,000 measurements.

Individually configurable spot-check monitor

The seca mVSA 535 is the world's first spot-check monitor that combines the conventional measurement of vital signs with a bioelectrical impedance analysis (BIA). In one step you can measure the 4 vital signs of blood pressure SpO2, pulse rate, and temperature and conduct a complete body composition analysis to determine fat, water, and muscle content. You can now measure more parameters in a routine check and broaden your diagnostic and therapeutic options through the combined view of BIA and vital signs. This high-performance software communicates with any network and guarantees the error-free transmission of all measurement values to your EMR system. Our integration service will individually integrate the system into your IT infrastructure as needed and thereby optimize your daily routine measurements. The seca mVSA is part of the radio-compatible seca 360° wireless product world and guarantees the automatic transmission of height and weight from compatible scales and length measuring systems to the device. The BMI is always automatically calculated along with this.

Luokittelu

  • Basic
  • Advanced
  • Premium

Tekniset tiedot

Blood pressure measurement methodOscillometric, deflation or inflation measurement
Blood pressure measurement timeNormal: 15 - 20 sec / max. 90 sec (adults)
Temperature measurement response timePredictive (oral) 3 - 10 sec.; Predictive (axillary/rectal) 8 - 14 sec.; Direct 60 - 120 sec.
Temperature measuring methodOral/axillary (direct or predictive)

Toiminnot ja ominaisuudet

Toimitus sisältää

  • 2x FILAC probe cover (Box á 20 pcs)
  • Removable Smart Bucket with integrated Vital Signs Moduls: for blood pressure/Temp measurement
  • FILAC temperature probes blue (oral)
  • Monitor with power cable
  • seca cuff (size M)
Tekniset tiedot

Tekniset tiedot

Display7" touchscreen display
BIA ModuleWithout BIA Module
Blood pressure measurement range - deflationpSYS: 25 - 280 mmHg pDIA: 10 - 220 mmHg pMAP: 15 - 260 mmHg
Blood pressure measurement range - inflationpSYS: 77 - 200 mmHg pDIA: 45 - 190 mmHg pMAP: 56 - 193 mmHg
Blood pressure measurement accuracy - deflation (clinical validated)Mean deviation systole 0.39 mmHg; Standard deviation systole 2.57 mmHg; Mean deviation diastole 0.43 mmHg; Standard deviation diastole 1.73 mmHg
Blood pressure measurement accuracy - inflation (clinical validated)Mean deviation systole 0.94 mmHg; Standard deviation systole 3.84 mmHg; Mean deviation diastole 0.57 mmHg; Standard deviation diastole 3.17 mmHg
Blood pressure measurement accuracy (under laboratory conditions)Mean deviation pSYS, pDIA, pMAP: max. +/- 3 mmHg
Blood pressure measurement methodOscillometric, deflation or inflation measurement
Blood pressure measurement certaintyExcess pressure limit 300 mmHg;
automatic pressure release at > 300 mmHg
Blood pressure measurement timeNormal: 15 - 20 sec / max. 90 sec (adults)
Blood pressure pulse rate accuracymax. +/- 3 bpm
Blood pressure pulse rate range - deflation30 - 240 bpm
Blood pressure pulse rate range - inflation45 - 200 bpm
Paino2,7 kg
Product width254 mm
Product height262 mm
Product depth278 mm
PortitEthernet
USB 2.0
WiFi
SpO2 moduleWithout SpO2 module
VirtalähdeBuilt-in power adapter, internal rechargeable lithium-ion battery
Temperature measuring rangeDirekt 30 °C - 43 °C; prädiktiv 35,5 °C - 42 °C
Temperature measurement response timePredictive (oral) 3 - 10 sec.; Predictive (axillary/rectal) 8 - 14 sec.; Direct 60 - 120 sec.
Temperature measurement accuracyDirekt ± 0,1 °C; Prädiktiv (bei 95 % der Messungen) ± 0,1 °C
Temperature measuring methodOral/axillary (direct or predictive)
Temperature moduleFILAC temperature oral/axillary

Toiminnot ja ominaisuudet

  • EMR ready
  • Blood pressure measurement
  • Likkuvaan käyttöön
  • Temperature measuement
  • Kosketusnäyttö
Lisävarusteet

Lisävarusteet

Järjestelmä

Järjestelmä

This product is compatible with all EMR systems and with the following EMR ready seca products.
